Backhaul and Access XGS-PON solutions from Venko Networks cover a wide range of applications through virtualization, hardware and software desagregation, using modern SDN (Software DefinedNetworking) concepts.
With a SFP+ hot-pluggable XGS-PON OLT (Optical Line Terminal) it is possible to transform switches and routers with SFP+ ports into an XGS-PON OLT, delivering high performance to B2B and B2C services.

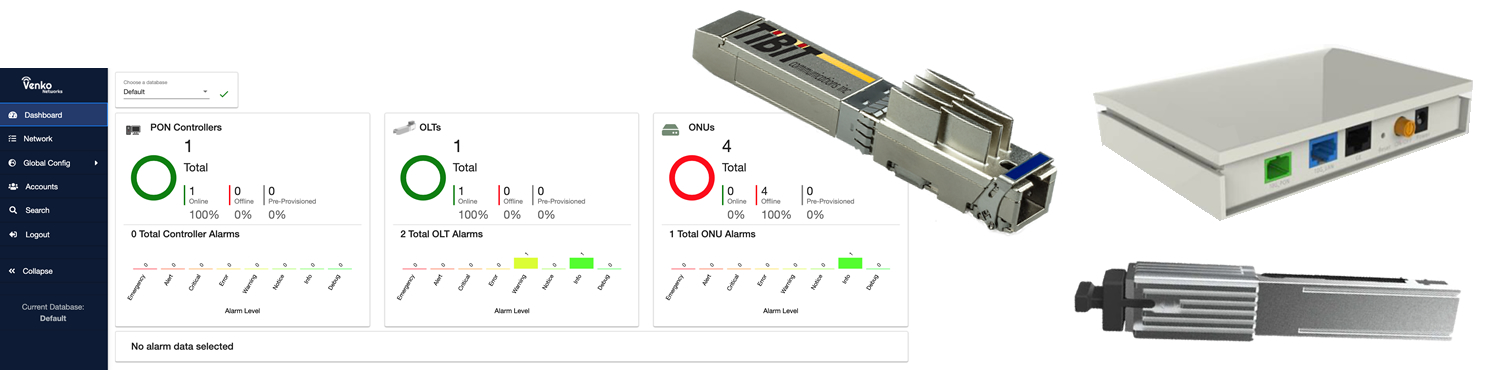

A remote and centralized SDN-based Management tool, ready to OLT virtualization (vOLT) provides friendly and carrier grade management of distributed OLTs and ONUs.

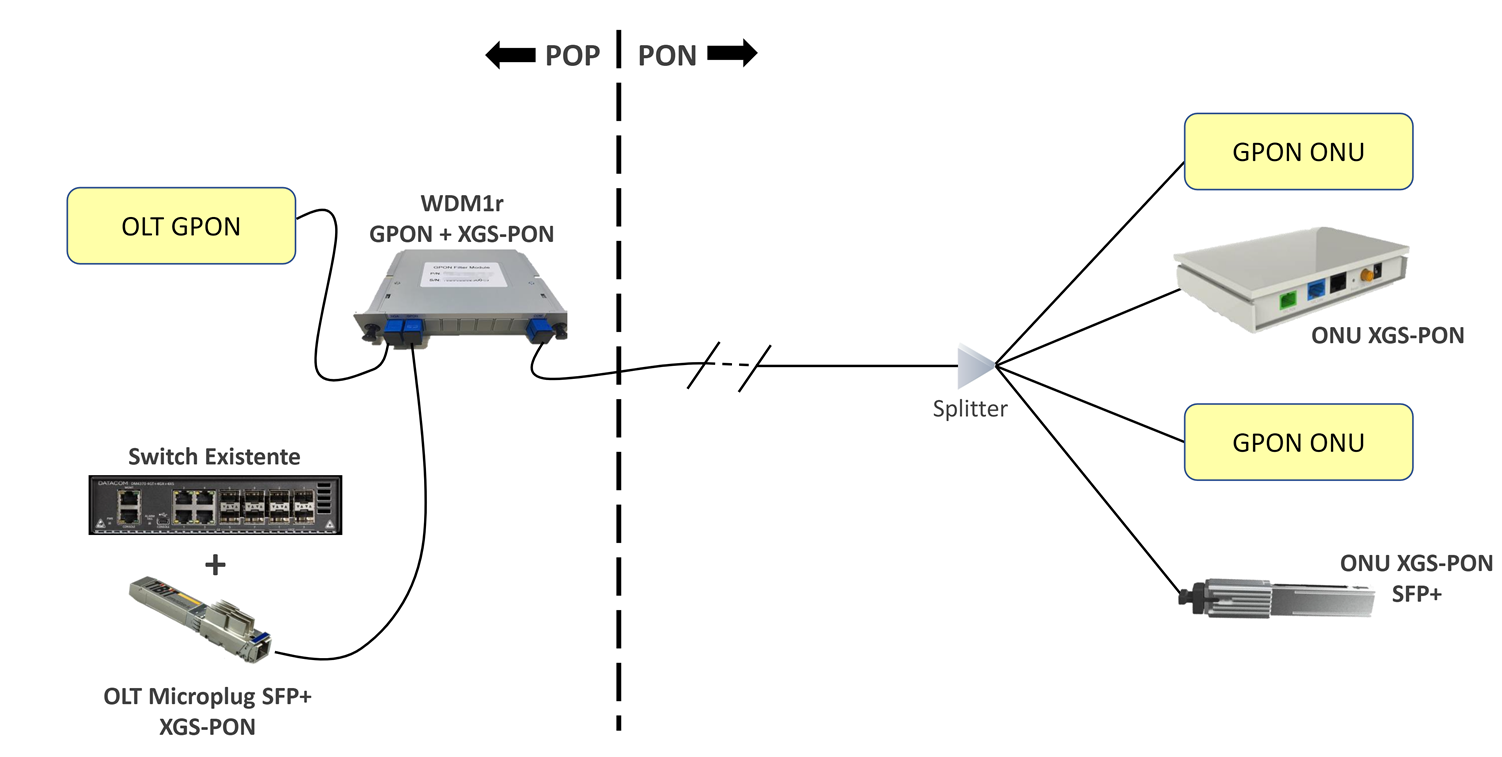

ONTs (Optical Networking Terminal) are available in a family of equipment with 10 GE ports, 2.SGE, ONU SFP+ stick, including IEEE 1588v2/Sync-E support for mobile backhaul applications. Both GPON com XGS-PON can share the same fiber infrastructure using WDM1r passive mux.

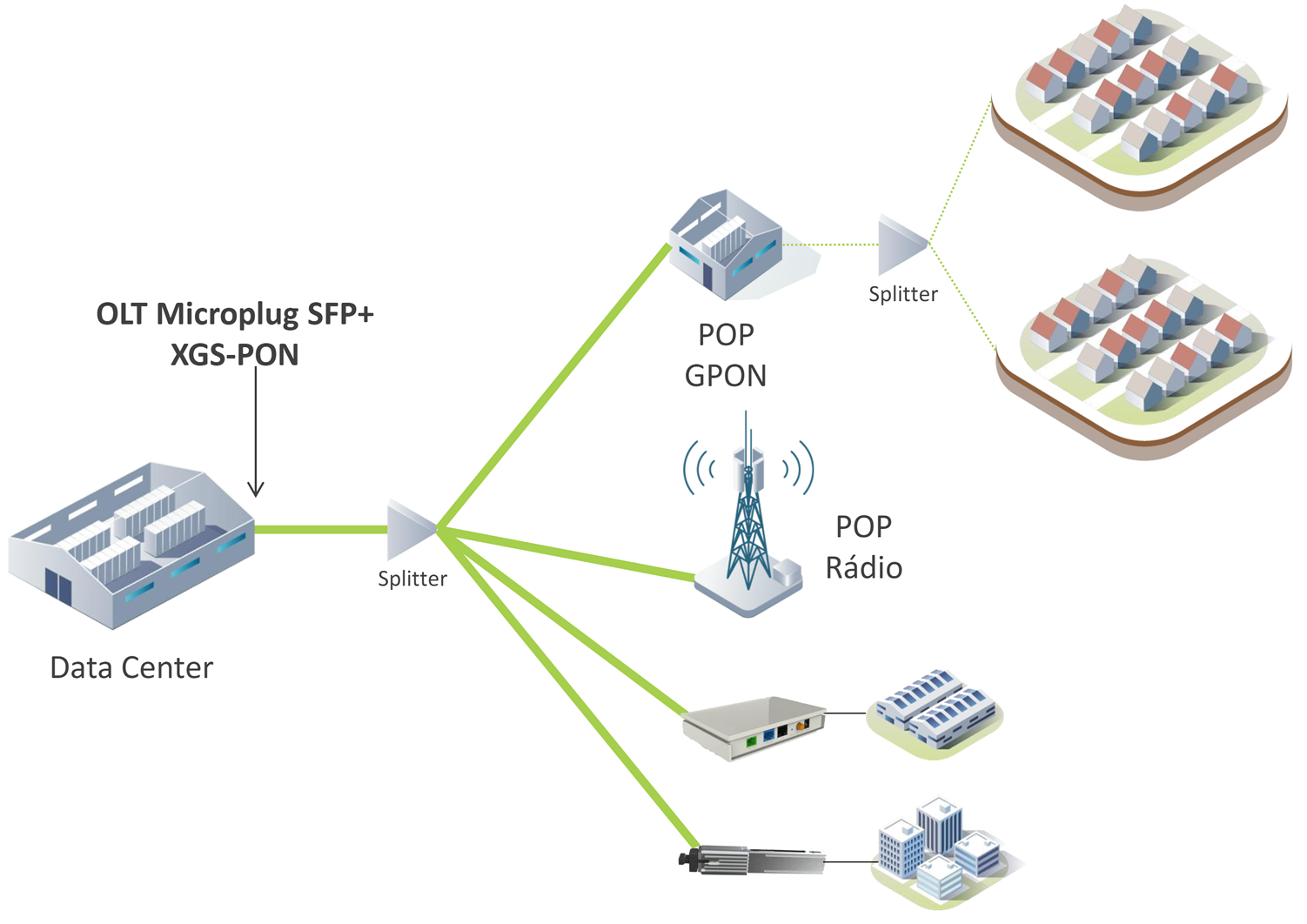

XGS-PON Microplug allows Service Providers and Telcos to implement symmetrical 10Gbps services using current switches or routers. By eliminating the need of specific XGS-PON chassi and use of existing infrastructure, it is possible to implement several PON ports in the vicinity of end customers.
Use XGS-PON network to deliver B2B services at a much competitive price than Active Ethernet (EDD, aggregation switch, etc.). Share the current fiber using GPON and provide up to symmetrical 10 Gbps services.
Increase up to 8x the capacity of current GPON without deploying new fiber, at a fast conmissioning pace.

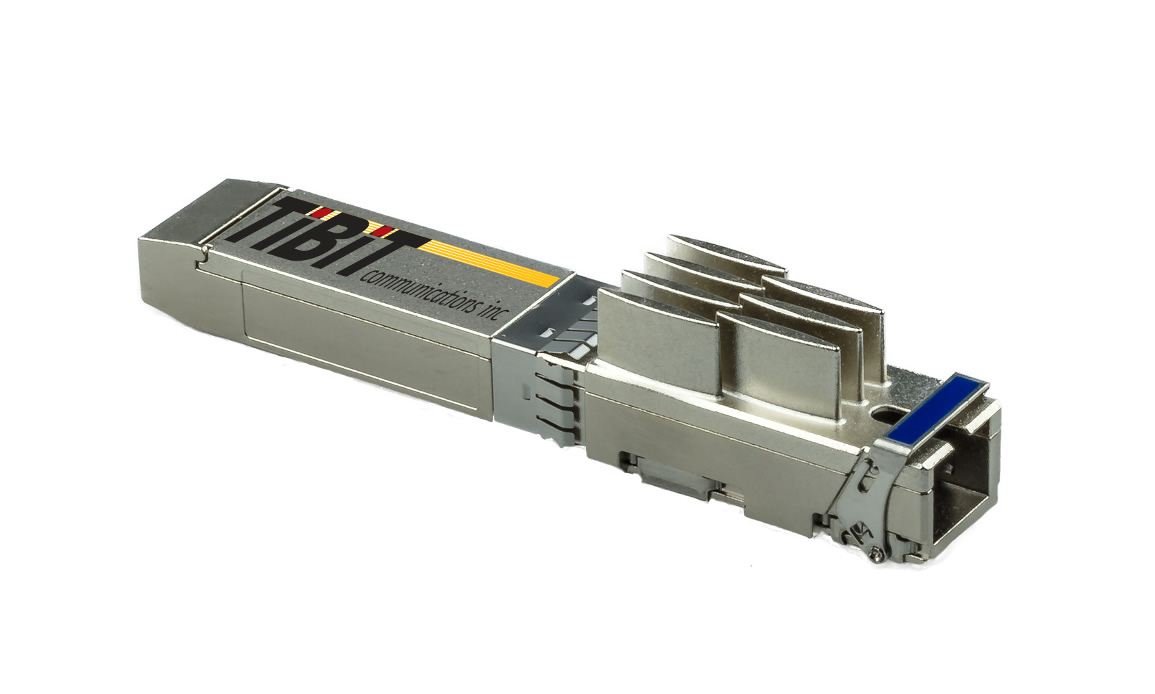

XGS-PON SFP+ OLT (Optical Line Terminal)

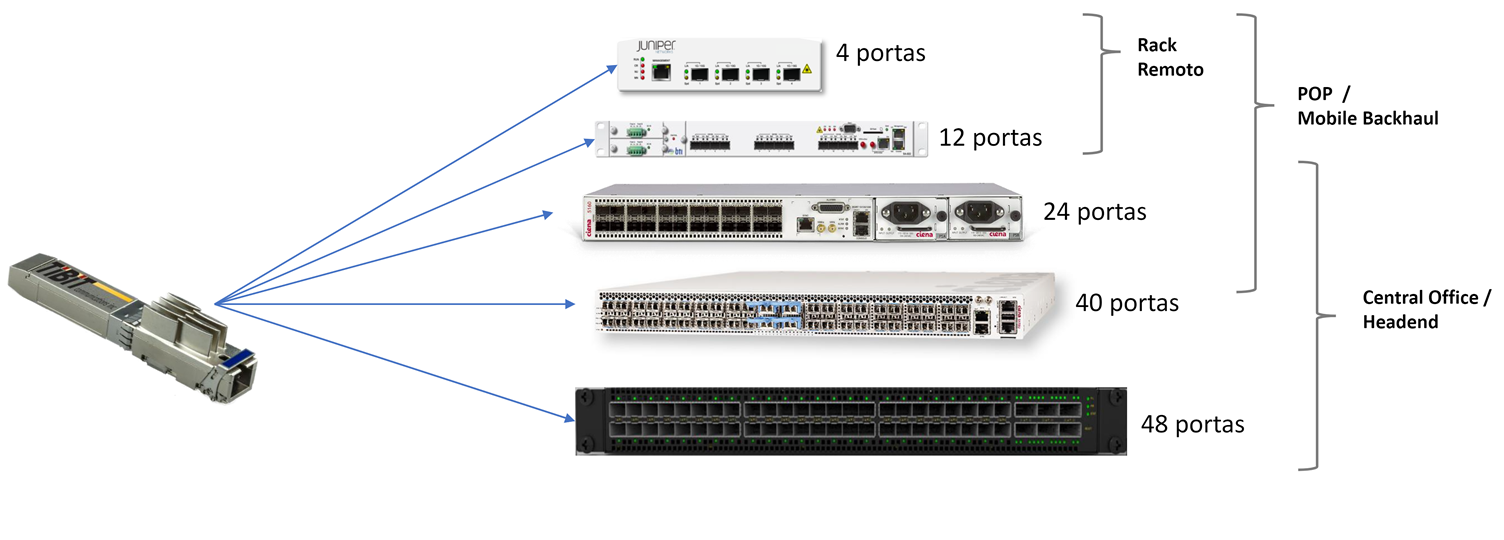

Transform switches and routers with SFP+ ports into a high-performance XGS-PON (10 Gbps symmetric) OLT
Delivery of B2B and B2C services
Centralized management of geographically distributed OLTs
SDN and carrier grade architecture
| Power TX | 4 to 7 dBm |
| RX Sensitivity | -28 dBm |
| Overload RX | -7 dBm |
| TX Wavelentth | 1577 nm |
| RX Wavelentth | 1270 nm |
| AC Range | 3,1 W |
| Operating Temperature | 0 to 70°C |
| Relative Humidity | 5% to 80% non-condensing |
| Dimensions | 81 x 19 x 14 mm |
| Weight | 34 g |
| Management | NETCONF, Web UI |

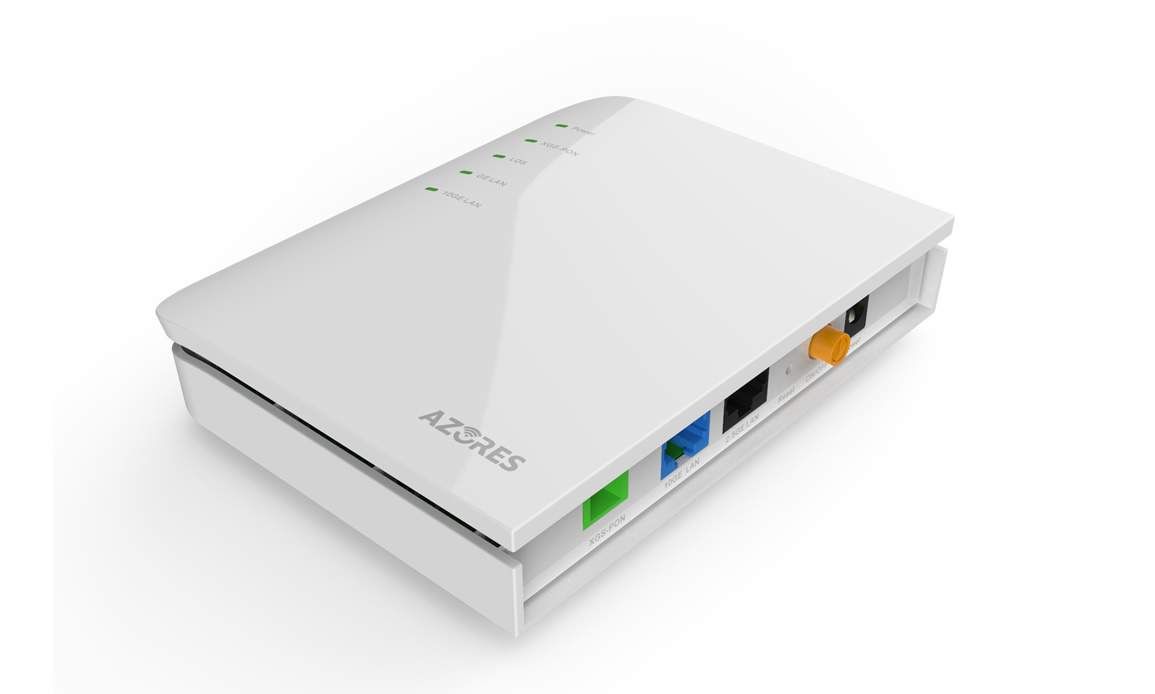

SFU XGS-PON in desktop format
Bridge mode
LAN ports: 1x 2.5GE (2.5G and 1000BaseT operating modes) + 1x 10GE (10G, 5G, 2.5G and 1000BaseT operating modes)
Jumbo Frames 9,000 bytes
VLAN tagging / untagging
VLAN stacking (Q-in-Q) and VLAN Translation
IP ToS / DSCP to 802.1p mapping
| Power TX | 4 to 9 dBm |
| RX Sensitivity | -28 dBm |
| Overload RX | -9 dBm |
| TX Wavelentth | 1270 nm |
| RX Wavelentth | 1577 nm |
| AC Operating Range | 100 – 240 VAC 50/60 Hz |
| AC Range | 10 W |
| Operating Temperature | 0 to 40°C |
| Relative Humidity | 10% to 95% non-condensing |
| Dimensions | 145 x 110 x 30 mm |
| Weight | 220 g |
| Management | OMCI in conformance with G.988, Telnet CLI and Web UI |

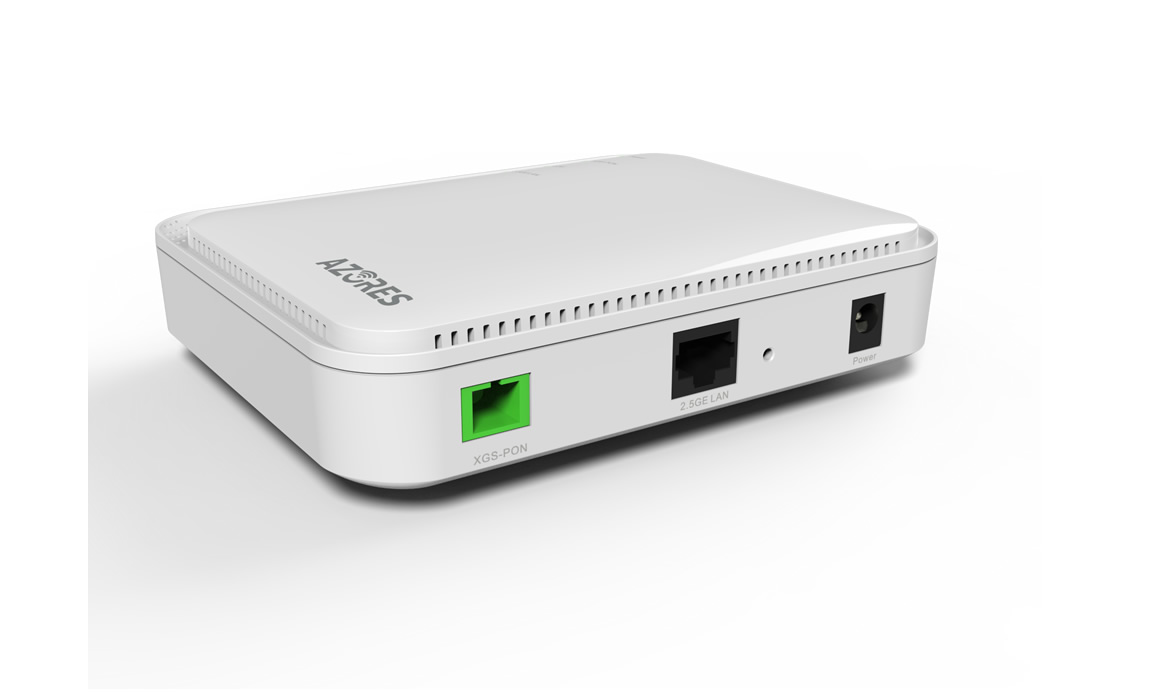

SFU XGS-PON in desktop format
Bridge mode
LAN ports: 1x 2.5GE (2.5G and 1000BaseT operating modes)
Jumbo Frames 9,000 bytes
VLAN tagging / untagging
VLAN stacking (Q-in-Q) and VLAN Translation
IP ToS / DSCP to 802.1p mapping
| Power TX | 4 to 9 dBm |
| RX Sensitivity | -28 dBm |
| Overload RX | -9 dBm |
| TX Wavelentth | 1270 nm |
| RX Wavelentth | 1577 nm |
| AC Operating Range | 100 – 240 VAC 50/60 Hz |
| AC Range | 10 W |
| Operating Temperature | 0 to 40°C |
| Relative Humidity | 10% to 95% non-condensing |
| Dimensions | 145 x 110 x 30 mm |
| Weight | 220 g |
| Management | OMCI in conformance with G.988, Telnet CLI and Web UI |

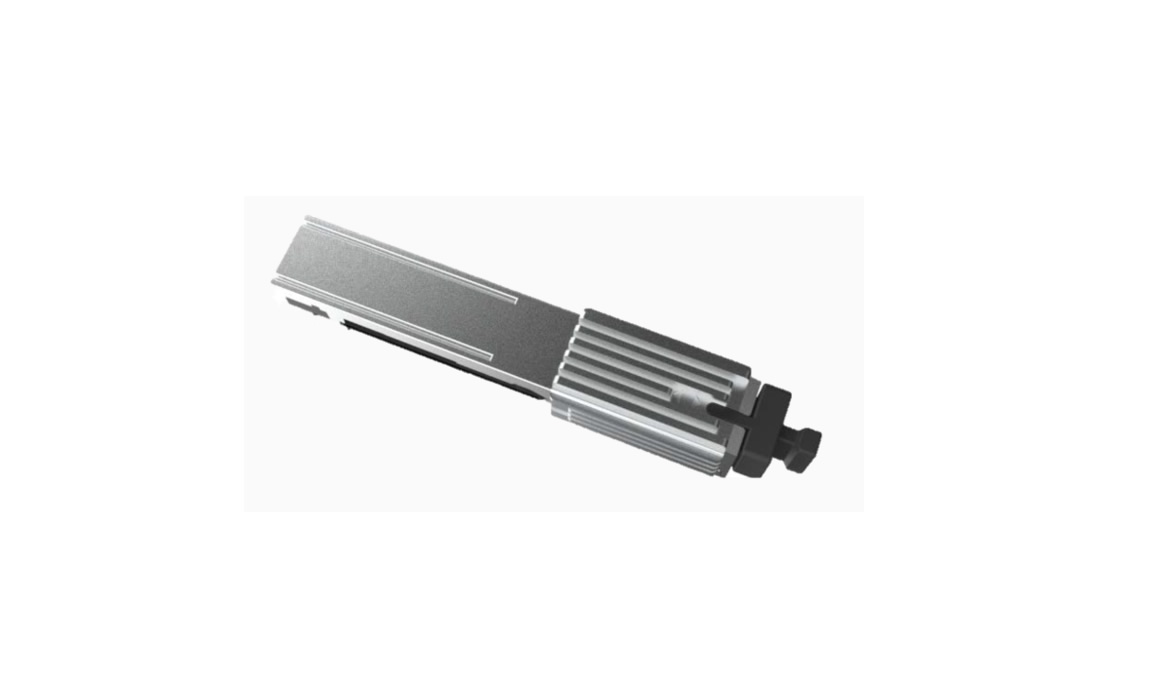

SFU XGS-PON in SFP+ transceiver format
Bridge mode
LAN ports: 1x 10GE according to SFP+ interface
Jumbo Frames 9,000 bytes
VLAN tagging / untagging
VLAN stacking (Q-in-Q) and VLAN Translation
IP ToS / DSCP to 802.1p mapping
| Power TX | 4 to 9 dBm |
| RX Sensitivity | -28 dBm |
| Overload RX | -9 dBm |
| TX Wavelentth | 1270 nm |
| RX Wavelentth | 1577 nm |
| AC Range | 2,1 W |
| Operating Temperature | -40 to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 87.5 x 15.6 x 13.75 mm |
| Weight | 30 g |
| Management | OMCI in conformance with G.988 |

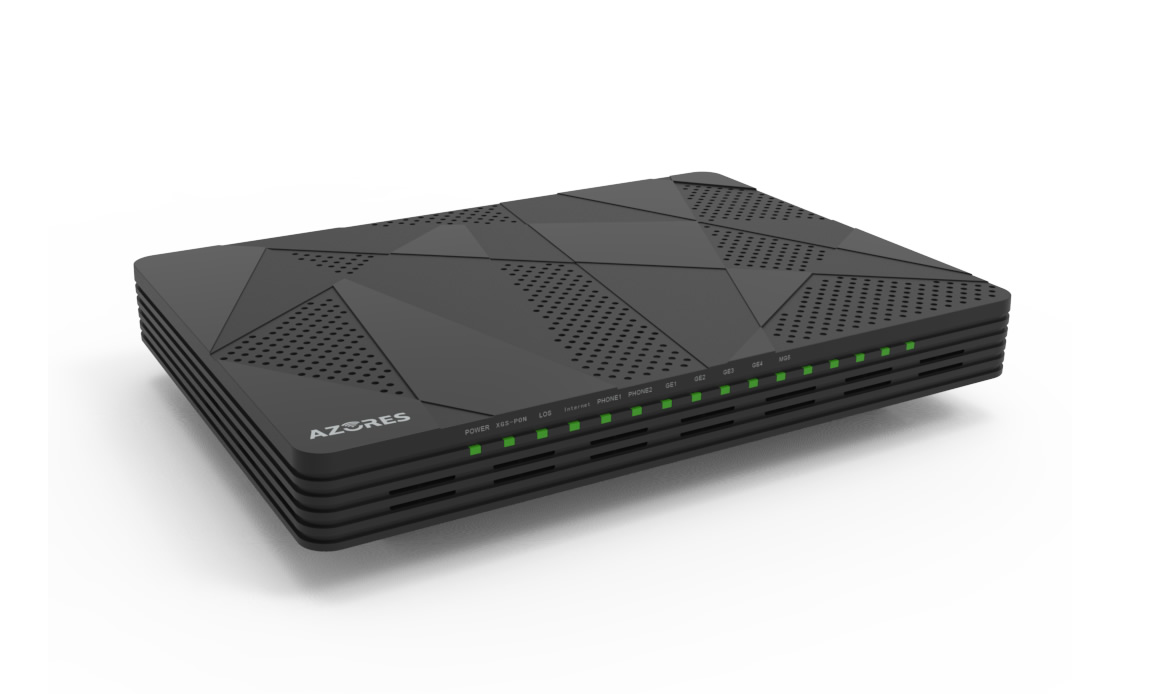

HGU XGS-PON
Router Mode (PPPoE, DHCP and static IP)
TR-069
Interfaces:
- 4x 1GE RJ45 (operation modes 10, 100 and 1000BaseT)
- 1x 10GE RJ45 (10G, 5G, 2.5G and 1000BaseT operating modes)
- 2x FXS
Input for UPS
| Power TX | 4 to 9 dBm |
| RX Sensitivity | -28 dBm |
| Overload RX | -8 dBm |
| TX Wavelentth | 1270 nm |
| RX Wavelentth | 1577 nm |
| AC Range | 11 W |
| Operating Temperature | 0 to 40°C |
| Relative Humidity | 10% to 95% non-condensing |
| Dimensions | 220 x 160 x 40 mm |
| Weight | 390 g |
| Management | OMCI in conformance with G.988, Telnet CLI, Web UI and TR-069 |

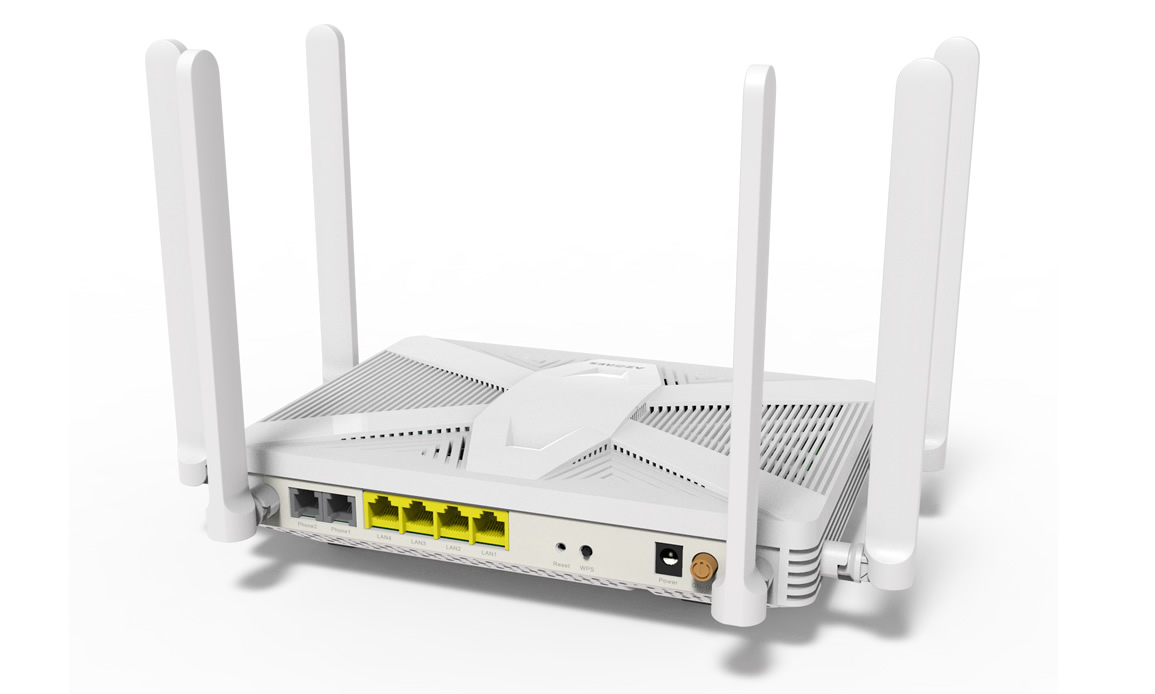

HGU XGS-PON with Wi-Fi 6 (802.11ax)
Router Mode (PPPoE, DHCP and static IP)
TR-069
Interfaces:
- 4x 1GE RJ45 (operation modes 10, 100 and 1000BaseT)
- 2x FXS
Wi-Fi 6
- EasyMesh
- 4x4 802.11ax 5GHz, for ultra-wideband and very low latency applications (PHY Speed 4.8 Gbps @160 MHz)
- 2x2 802.11ax 2.4GHz for greater wireless coverage (PHY Speed 574 Mbps @40 MHz)
| Power TX | 4 to 9 dBm |
| RX Sensitivity | -28 dBm |
| Overload RX | -8 dBm |
| TX Wavelentth | 1270 nm |
| RX Wavelentth | 1577 nm |
| AC Range | 24 W |
| Operating Temperature | 0 to 40°C |
| Relative Humidity | 10% to 90% non-condensing |
| Dimensions | 160 x 220 x 34 mm |
| Weight | 425 g |
| Management | OMCI in conformance with G.988, Telnet CLI, Web UI and TR-069 |

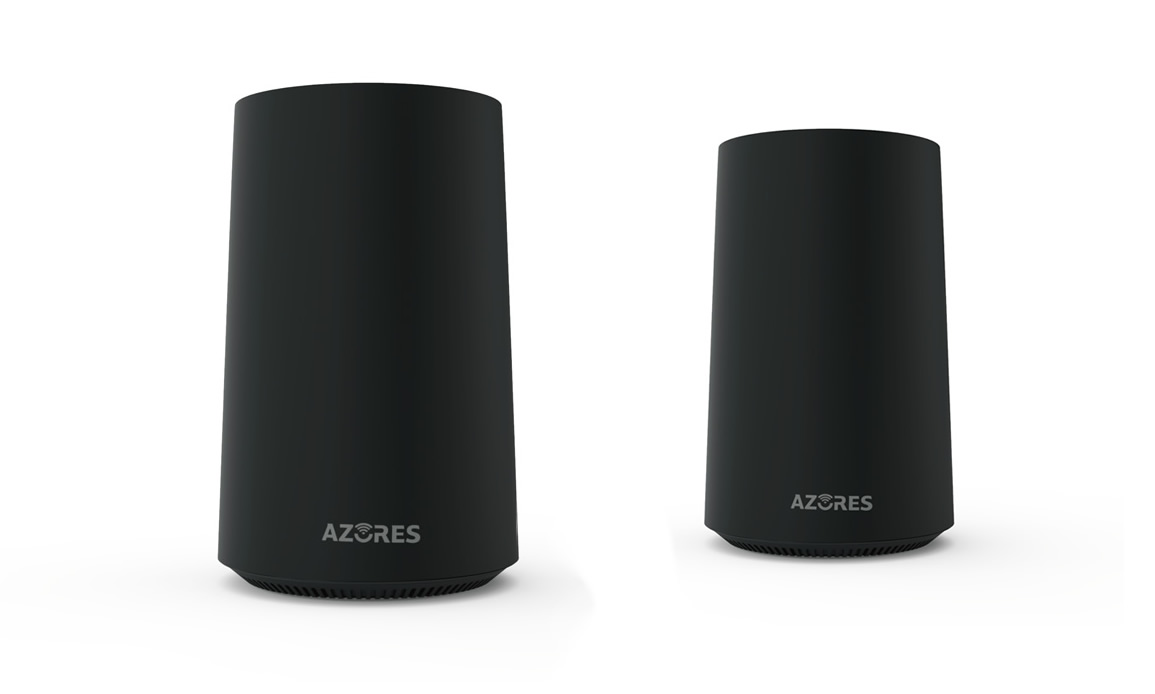

2x gigabit ethernet RJ-45 interface (WAN/LAN auto-detection)
Wi-Fi 5 GHz
- 2x2 802.11ax, 802.11ac,802.11n
- 2 internal antennas with 5 dBi gain
- 1200 Mbps speed
2.4 GHz Wi-Fi
- 2x2 802.11ax, 802.11n
- 2 internal antennas with 5 dBi gain
- 574 Mbps speed
Band Steering
Wi-Fi Alliance EasyMesh
- backhaul via 802.11ax or RJ-45 ethernet
| AC Range | 18 W |
| Operating Temperature | 0 to 40°C |
| Relative Humidity | 10% to 90% non-condensing |
| Dimensions | 96 x 160.5 mm |
| Weight | 360 g |
| Management | Web UI and APP to Smartphone |

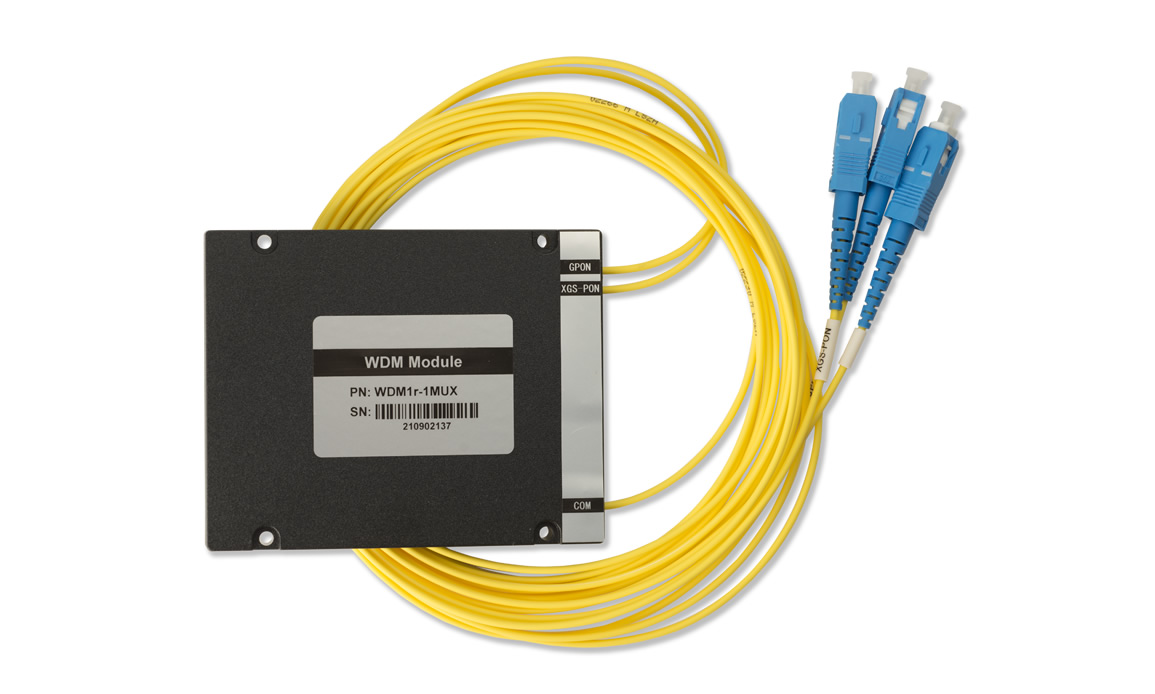

GPON + XGS-PON
High thermal stability
Low insertion and polarization losses
High isolation between channels
SC/UPC connector for GPON, XGS-PON and COM ports
| Services | GPON |
| Spectro | 1290-1330 nm
1480-1500 nm |
| Maximum insertion loss | < 0,7 dB |
| Isolation | > 25 dB |
| Service | XGS-PON |
| Spectro | 1260-1280 nm
1524-1625 nm |
| Maximum insertion loss | < 0,7 dB |
| Isolation | > 16 dB |

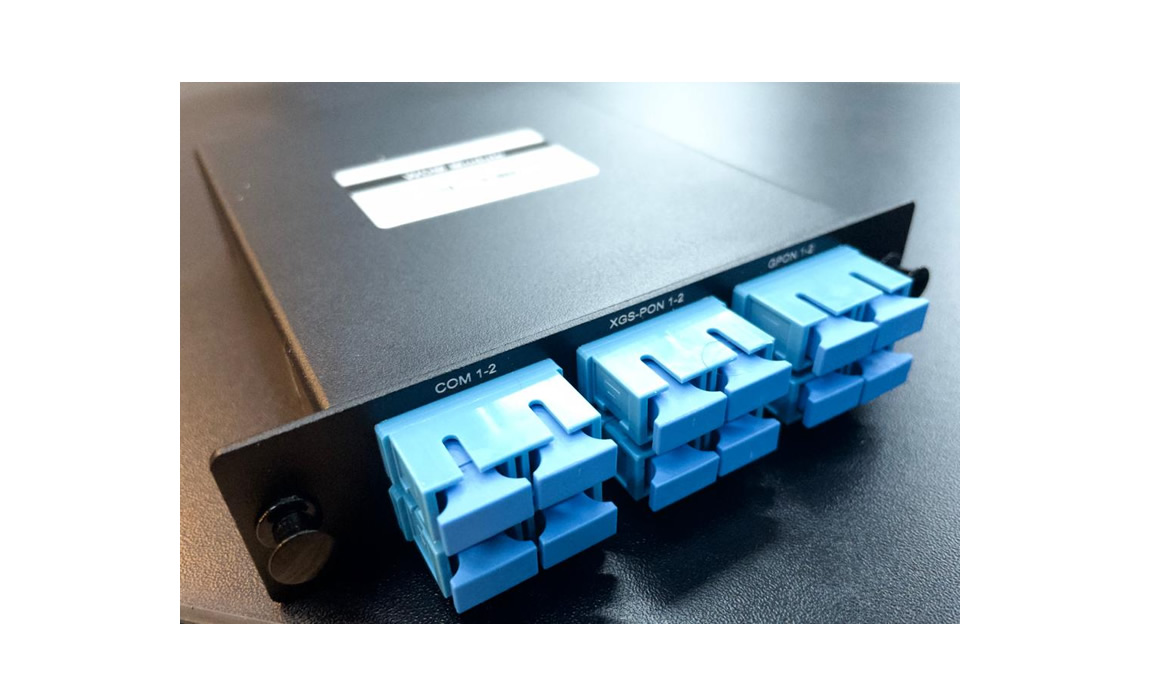

GPON + XGS-PON
High thermal stability
Low insertion and polarization losses
High isolation between channels
SC/UPC connector for GPON, XGS-PON and COM ports
| Service | GPON |
| Spectro | 1290-1330 nm
1480-1500 nm |
| Maximum insertion loss | < 1,0 dB |
| Isolation | > 30 dB |
| Service | XGS-PON |
| Spectro | 1260-1280 nm
1524-1625 nm |
| Maximum insertion loss | < 0,8 dB |
| Isolation | > 30 dB |
