Venko was establish under the assumptions of freedom of choice, open standards, desagregation of equipment and applications, and having software as the leading role in technical architecture definition. Following those guidelines, we have structured a global networks of premium hardware vendors that share this approach, providing Universal CPEs or Network Appliance, preventing the situation where we become hostages of the HW+SW lock-in.

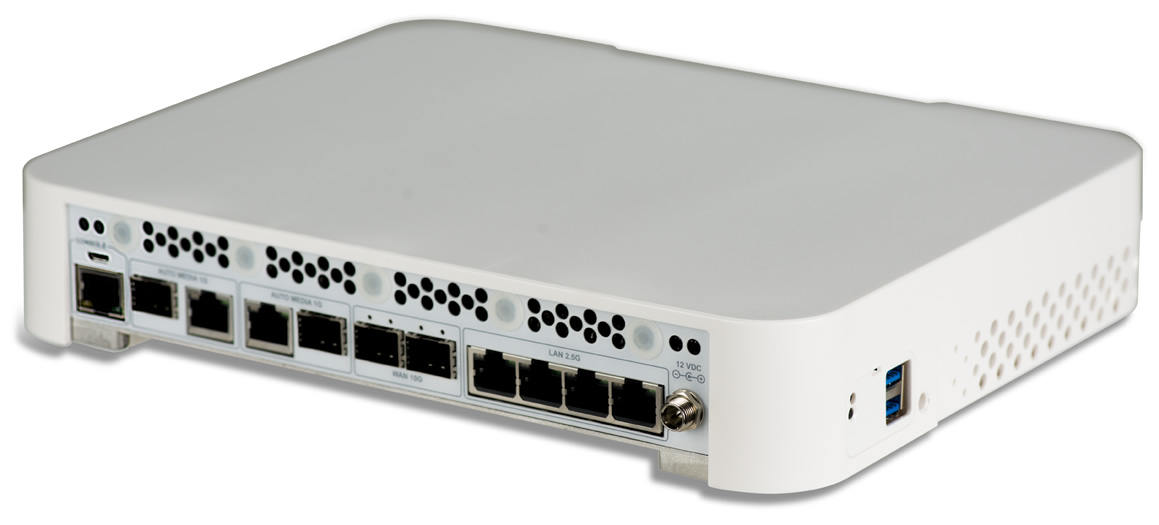

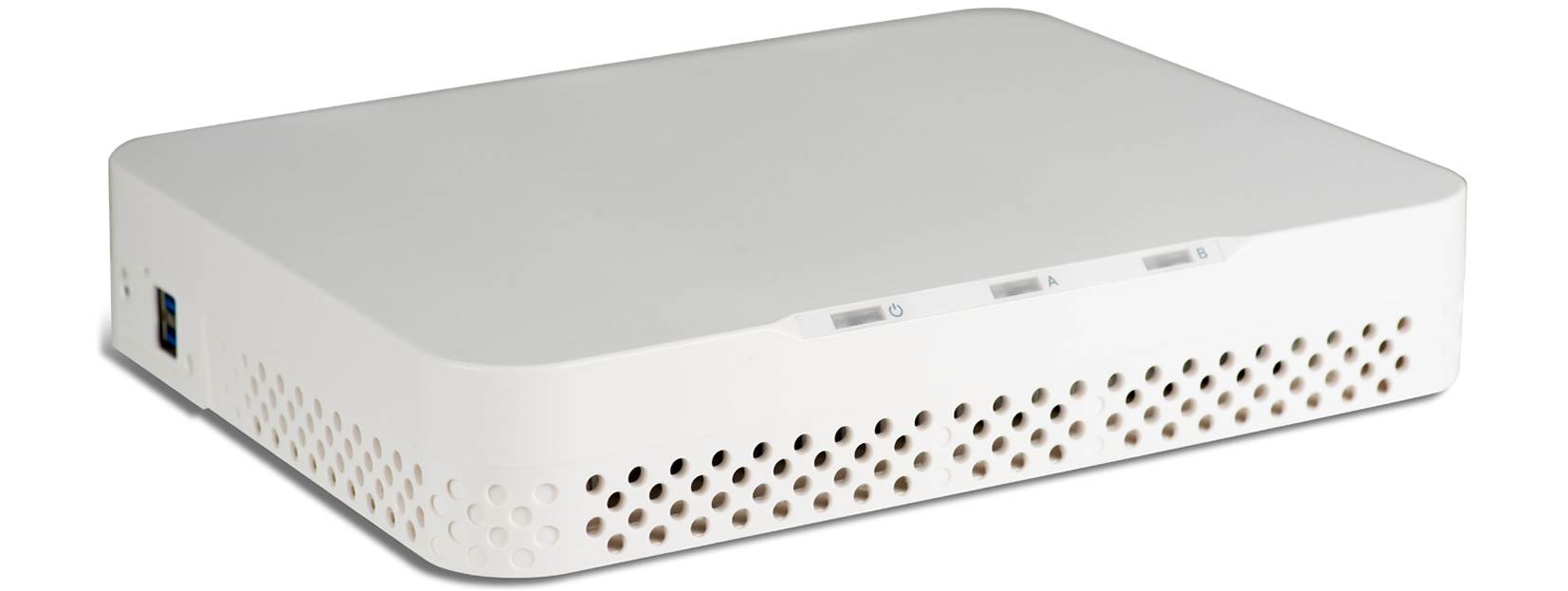

The Silicom Cordoba uCPE is perfect for high-bandwidth applications. The elegant design of the uCPE includes all internal antennas. Supporting 5G FR1 (sub 6Ghz frequency bands), the device can accept the maximum bandwidth available from the local 5G carrier. That 5G WAN backbone supports 2.5G Ethernet and next-generation Wi-Fi 6 access networks. Silicom Cordoba also features advanced security functionality including a built-in IPSec security engine for encryption (QAT), Trusted Platform Module (TPM) for secure cryptography and Hardware Root of Trust functionality to ensure boot security.
| CPU | Intel Atom C3000 (2, 4 e 8 colors) |
| RAM Memory | DDR4 up to 32 GB. ECC support. |
| Ethernet Ports | 4x 2.5GE RJ45 + 2x 1GE Combo (RJ45 + SFP) + 2x 10GE* (SFP+) |
| Storage | On-board and expansion NVME SSD |
| USB | 2x USB 3.0 |
| Console | RJ45 RS-232 on front panel |
| Wi-Fi | Support through internal module (optional). 8 internal antennas (4x 2,4 GHz + 4x 5 GHz). Optional external antennas. |
| LTE/5G | Support through internal module (optional). 4 internal antennas sub 6 GHz. Optional external antennas. |
| Power | External power adapter AC-DC. 12 VDC input. |
| Temperature | Until 40 oC |
* 10GE disponível nos modelos 4 e 8 cores

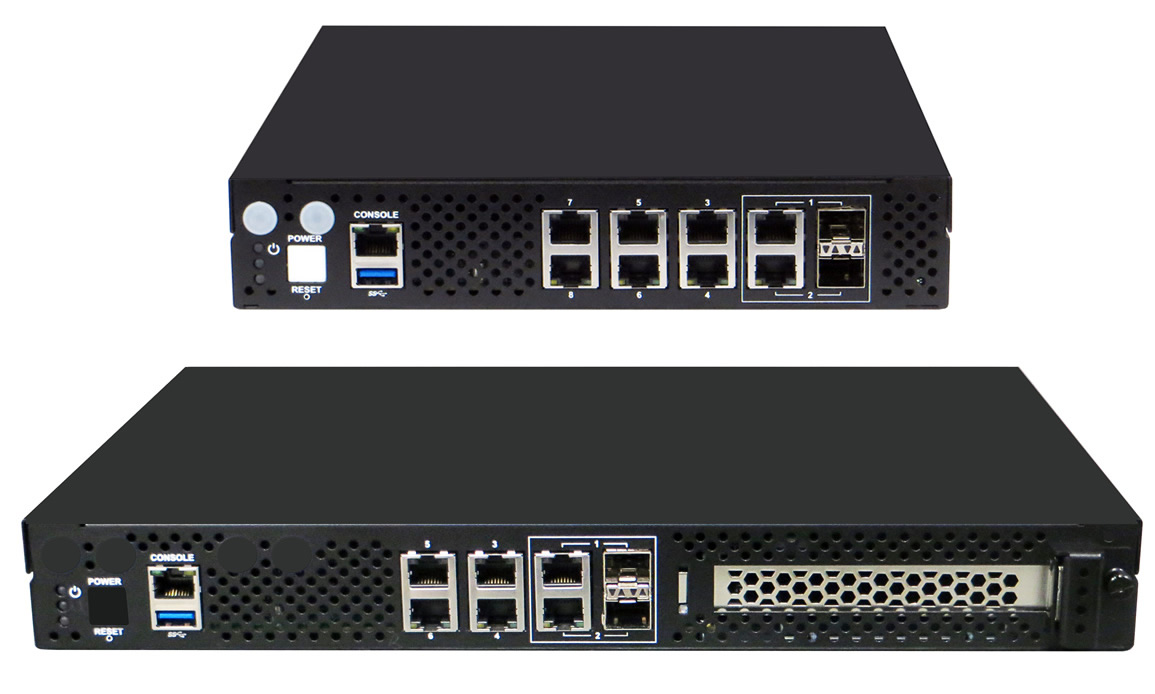

Silicom’s uCPE are based on the Intel Atom® C3000 Processor product line is a highly flexible network edge device that brings the agility of modular LAN, WAN, management, and compute to applications in SD-WAN, uCPE, security, small cell, and IoT. The Madrid platform has two form factors: Desktop and 1U. The 1U support PCIe add in card.
| CPU | Intel Atom C3000 (2, 4, 8, 12 e 16 colors) |
| Memória RAM | 2 SODIMM channels up to 32 GB. ECC support. |
| Portas Ethernet | 4x 1GE RJ45 + 2x 1GE Combo (RJ45 + SFP) |
| Armazenamento | On-board and expansions M.2 (2x) and SATA (2x) |
| USB | 1x USB 3.0 on front panel |
| Console | RJ45 RS-232 on front panel |
| Wi-Fi | Support through internal module (optional) and external antennas |
| LTE | Support through internal module (optional) and external antennas |
| PCIe Expansion | Supported on Madrid 1U |
| Power | External power adapter AC-DC. 12 VDC input. |
| Temperature | Up to 40 oC |
