CGNAT (Carrier Grade NAT), also known as Large Scale NAT, is the next level for NAT implementations.
CGNAT allows organizations to deliver transparent IPv4 connectivity and a proper user experience. Carriers can assign local (private) IPv4 addresses on their access network and use a centralized device to manage addresses translation for the global (public) Internet.
CGNAT Type |
Flexible Deployment |
| Deterministic - Allocation of a fixed number of TCP/UDP ports per Public IPv4. Bulk - Ports Dynamic Allocation, allocating blocks with pre-defined fixed size. Dynamic - Allocation is made according to application needs, without the use of pre-defined blocks. Full Cone Nat NAT feature that allows the connection of an external host to service type such as P2P, Games, VPN, etc. |
-High Availability -In-band and out-of-band management -Link Aggregation -Customized log export Multi Tenant- Infrastructure virtualization through V-Sys e V-Route. Advanced Features- Application Control - Attack Defense - IP Reputation filter - Botnet C&C Prevention |
The topology at the right figure shows a use case where end users, particularly home users, are configured with private network addresses that are converted to public IPV4 addresses by the CGNAT device present on the carrier network , allowing the sharing of small sets of public addresses among many end user.

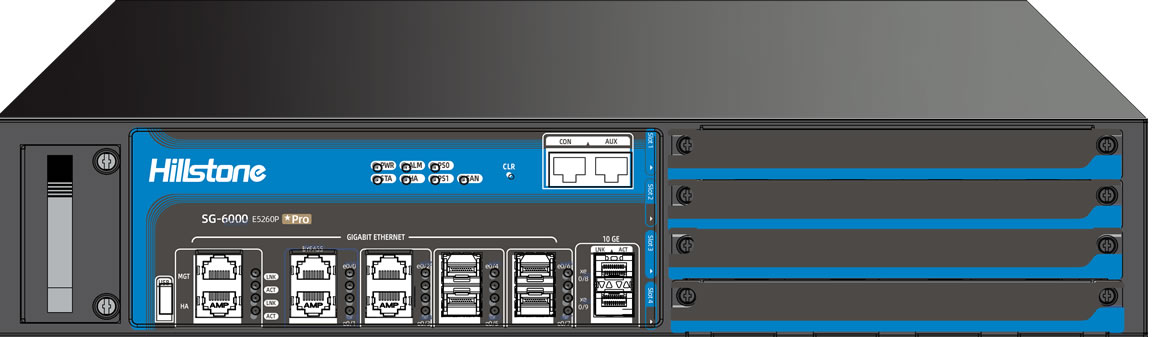

- Nominal Capacity: 20 Gbps
- CGNAT Capacity: 10Gbps
- Power Supply: Redundant Power Supply AC
2 x 450W 1 + 1
- Interfaces: 2x SFP+(10G) | 4x GE(1G) | 4x SFP(1G)
- Maximum Concurrent Sessions:
6 Million
- New Sessions/sec:
200.000
| Dimension | 2U Rackmount 17.3 x 20.9 x 3.5 in (440 x530 x 88 mm) |
| Interfaces | 4 x GE, 4 x SFP, 2 X SFP+ |
| CGNAT Capacity | Up to 10 Gbps |
| Power Supply | AC 100-240V 50/60Hz |
| Temperature | 32-104°F (0-40°C) |

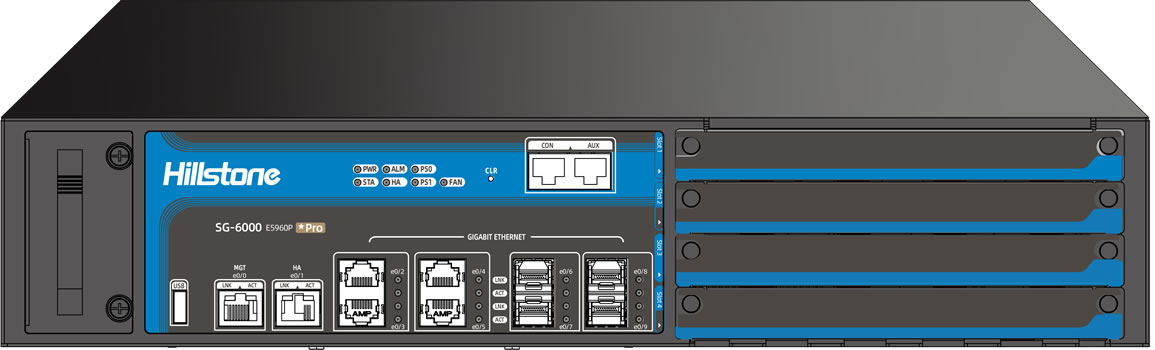

- Nominal Capacity: 40 Gbps
- CGNAT Capacity: 20Gbps
- Power Supply: 2 x 450W 1 + 1
- Interfaces: 4x SFP+(10G) | 4x GE(1G) | 4x SFP(1G)
- Maximum Concurrent Sessions:
12 Million
- New Session/sec:
500.000
| Dimension | 2U Rackmount 17.3 x 20.9 x 3.5 in (440 x530 x 88 mm) |
| Interfaces | 4x GE, 4x SFP, 4x SFP+ |
| CGNAT Capacity | Up to 20 Gbps |
| Power Supply | AC 100-240V 50/60Hz |
| Temperature | 32-104°F (0-40°C) |
- Nominal Capacity: 60 Gbps
- CGNAT Capacity: 30Gbps
- Power Supply: AC or DC:
2 x 300W
- Interfaces: 2 × QSFP+, 16 × SFP+ (10G) | 8 × GE (1G)
- Maximum Concurrent Sessions:
20 Million
- New Sessions/sec:
800.000
| Dimensions | 1U Rackmount 17.2 x 17.2 x 1.7 in (436 x 437 x 44 mm) |
| Interfaces | 2 × QSFP+, 16 × SFP+ (10G) | 8 × GE (1G) |
| CGNAT Capacity | Up to 30 Gbps |
| Power Supply | AC 100-240V 50/60Hz DC -36~-72V 2x 300 W |
| Temperature | 32-104°F (0-40°C) |

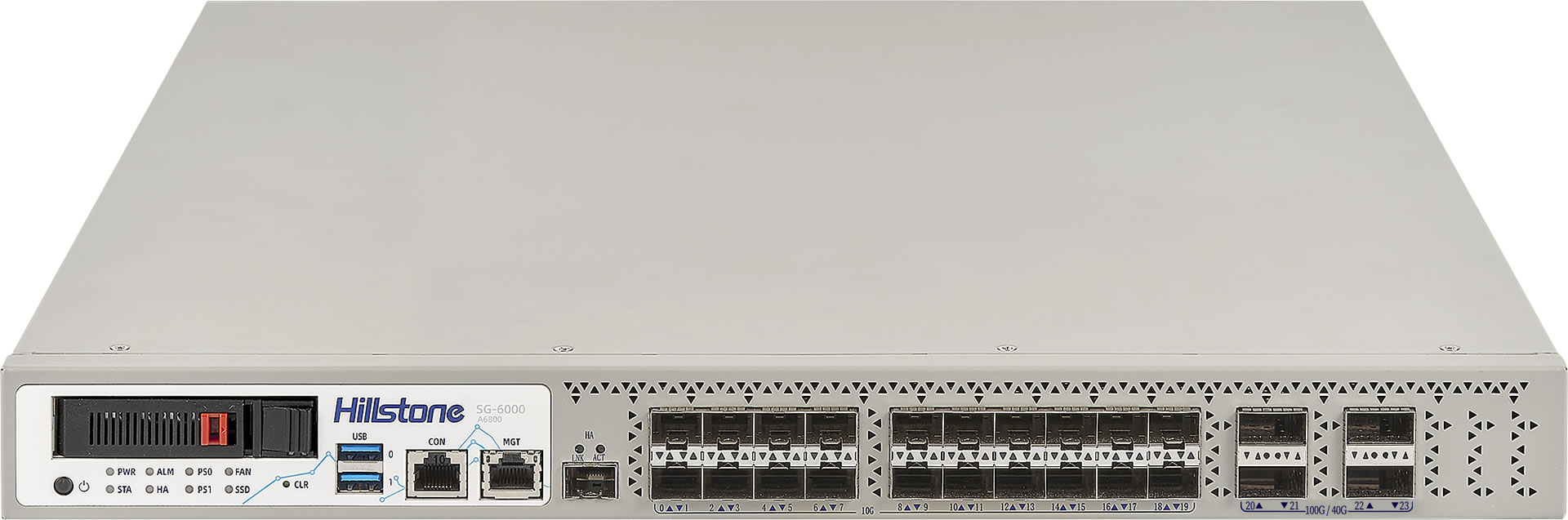

- Nominal Capacity: 80 Gbps
- CGNAT Capacity: 40Gbps
- Power Supply: AC or DC:
2 x 300W
- Interfaces: 2 × QSFP+, 16 × SFP+ (10G) | 8 × GE (1G)
- Maximum Concurrent Sessions:
25 Million
- New Sessions/sec:
930.000
| Dimensions | 1U Rackmount 17.2 x 17.2 x 1.7 in (436 x 437 x 44 mm) |
| Interfaces | 2 × QSFP+, 16 × SFP+ (10G) | 8 × GE (1G) |
| CGNAT Capacity | Up to 40 Gbps |
| Power Supply | AC 100-240V 50/60Hz DC -36~-72V 2x 300 W |
| Temperature | 32-104°F (0-40°C) |

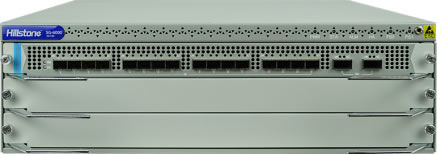

- Nominal Capacity: 450 Gbps
- CGNAT Capacity: 200Gbps
- Power Supply: AC ou DC:
2 x 1.300W
- Interfaces: up to 6x 100GE + 48x 10GE
- Maximum Concurrent Sessions:
130 Million
- New Sessions/sec:
2,5 Million
| Dimensions | 3U Rackmount 17.3 in × D 21.7 in × H 5.2 in (W 440 mm × D 552 mm × H 132 mm) |
| Interfaces | Up to 6x 100GE + 48x 10GE |
| CGNAT Capacity | Up to 200 Gbps |
| Power Supply | AC 100-127 V / 200-240 V (50/60 Hz), DC -48 ~ -60 V 2x 1.300 W |

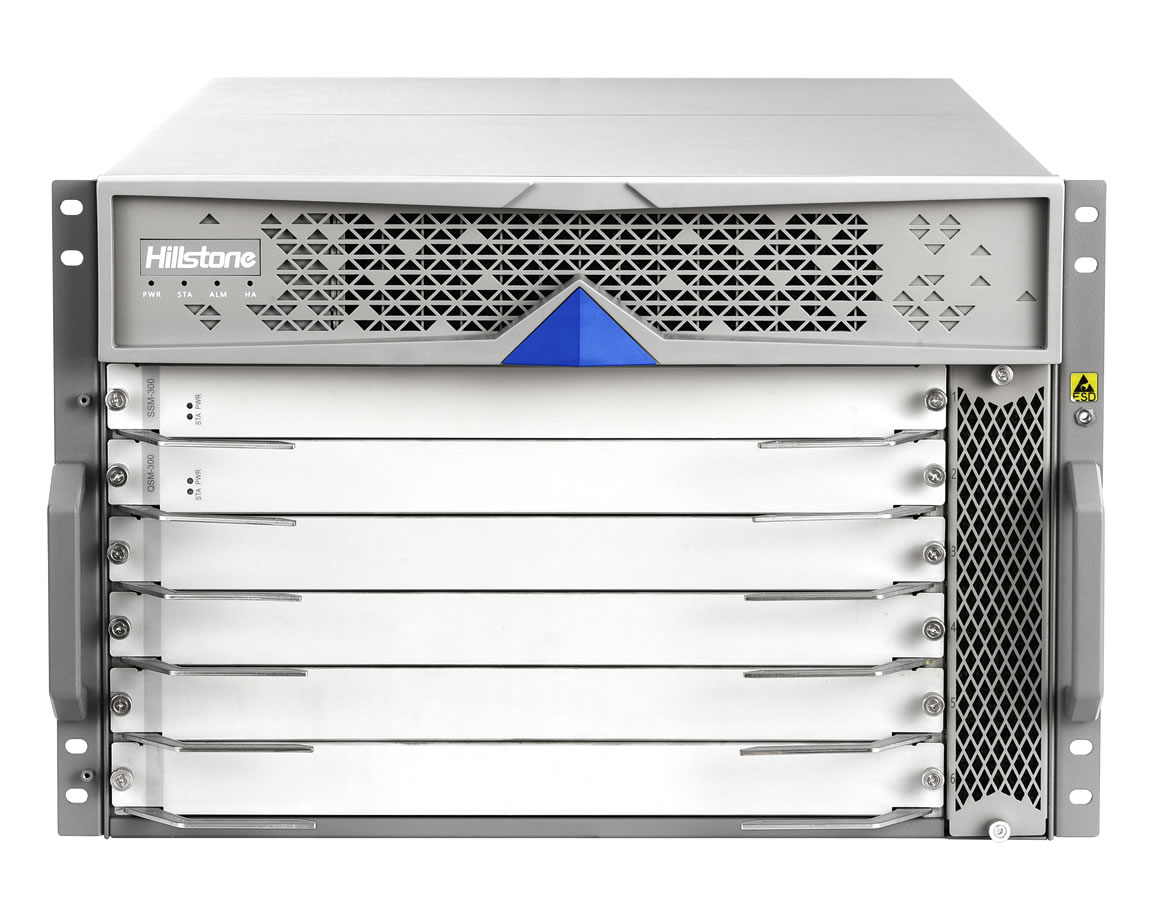

- Nominal Capacity: 600 Gbps
- CGNAT Capacity: 450Gbps
- Power Supply: AC / DC
2 x 3.200W, N+M hot swap
- Interfaces: up to 12x 40GE + 72x 10GE or 24x 100GE + 48x 10GE or 12x 100GE + 120x 10GE
- Maximum Concurrent Sessions:
200 Million
- Maximum Concurrent Sessions:
4 Million
| Dimensions | 7U Rackmount W 17.3 in × D 28.9 in × H 12.1 in ( W 440 mm × D 735 mm × H 308 mm) |
| Interfaces | 12x 40GE + 72x 10GE or 24x 100GE + 48x 10GE or 12x 100GE + 120x 10GE |
| CGNAT Capacity | Up to 450 Gbps |
| Power Suplly | AC 90-140 V / 180-264 V (50/60 Hz), DC -36 ~ -72 V 2 x 3200W, N+M, Hot Swap |

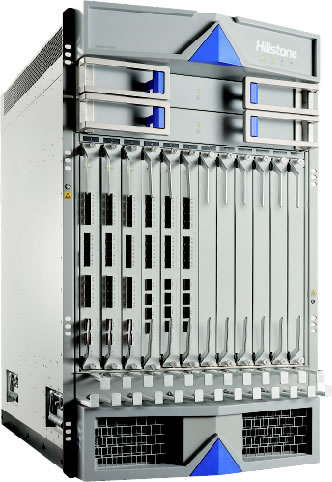

| Dimensions | 18U Rackmount 17.3 × 31.4 × 25 in ( 440 × 797 × 635 mm) |
| Interfaces: | 12x 2 100GE+ 12x 20 10GE or 12x4 100GE+ 12x8 10GE |
| CGNAT Capacity: | Up´to 600 Gbps |
| Power Supply: | AC 90-140 V / 180-264 V (50/60 Hz), DC -36 ~ -72 V 4400W, N+M Hot Swap |
- Nominal Capacity: 1.2 Tbps
- CGNAT Capacity: 600 Gbps
- Power Supply: AC / DC
4400W, N+M Hot Swap
- Interfaces: até 12x 2 100GE+ 12x 20 10GE ou 12x4 100GE+ 12x8 10GE
- Maximum Concurrent Sessions:
480 Million
- Maximum Concurrent Sessions:
10 Million
