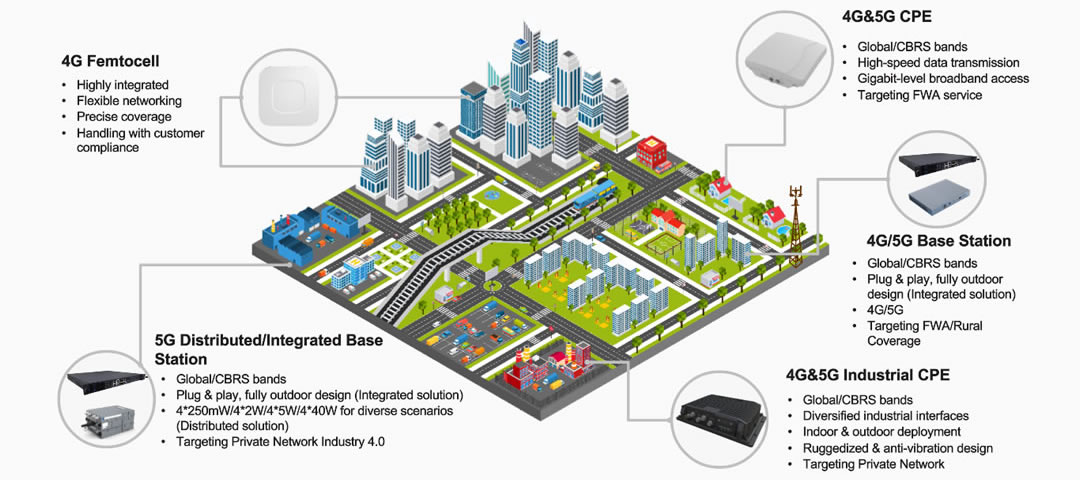

Venko Networks provides radio access network solutions point-to-multipoint 4G LTE to extend the reach and accelerate the growth of high-speed broadband service in rural, suburban and urban areas, as well as increase operational efficiency of our customers. Our wide range of 4G LTE products are ideal for residential, commercial and corporate users.

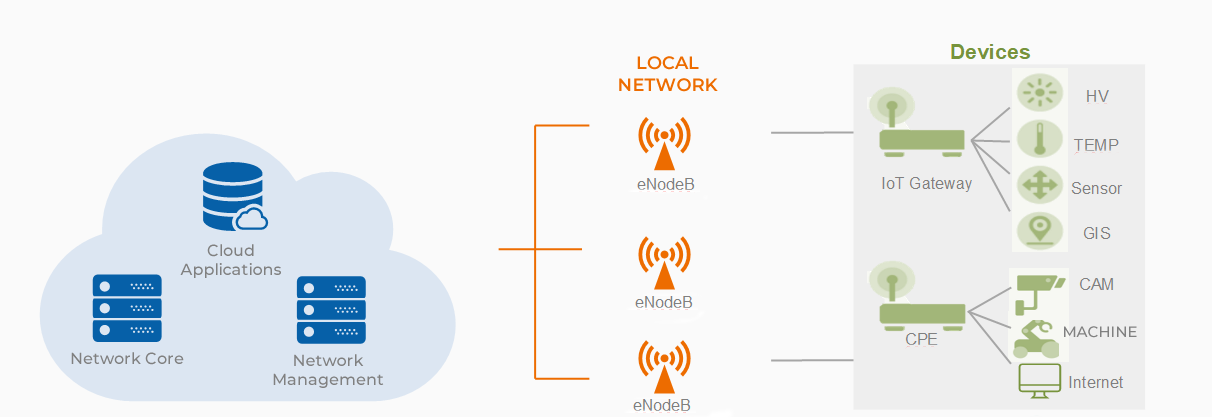

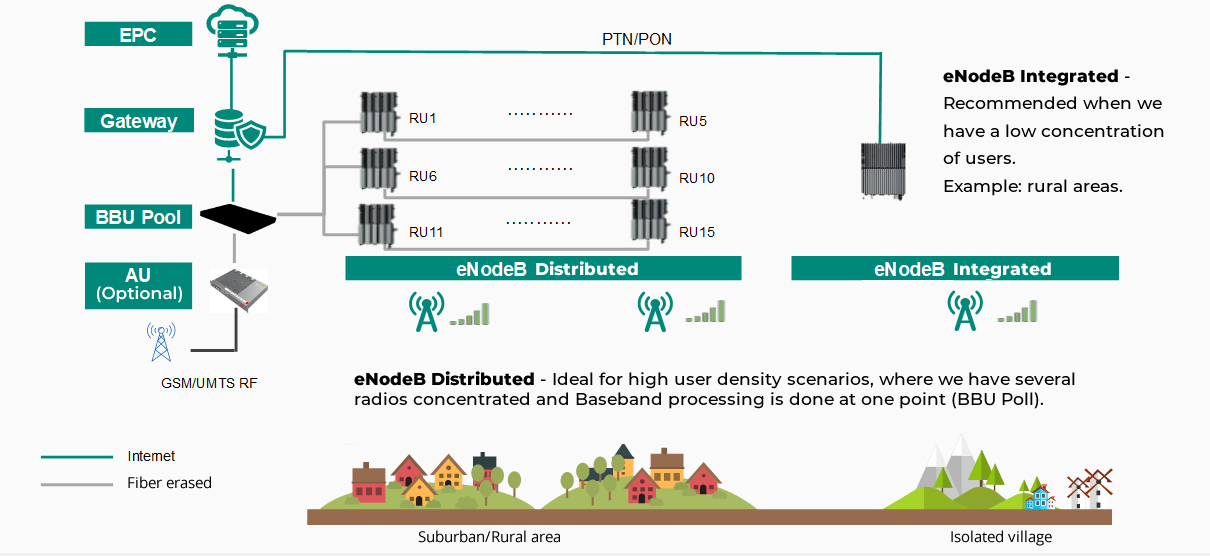

Currently open and standardized (3GPP) architectures are increasingly important in the telecommunications industry. With open solutions, and a distributed design, we can provide a high-performance, reliable and easy-to-maintain 4G LTE radio access network that supports today's technology and tomorrow's network evolution.
In many locations there are few offers for 4G LTE internet signals, and this service is still offered only by large telecommunications operators. A private 4G LTE network provides internet connectivity to sparsely polulated and rual areas, thus accelerating acccess to this technology. With a private 4G LTE network, some sectors of the economy will be able to better manage their resources by implementing real-time management and monitoring system for their operations, such as ports, mining, reforestation, etc. Currently most agricultural machines already have a 4G LTE gateway for connection to monitoring and telemetry.

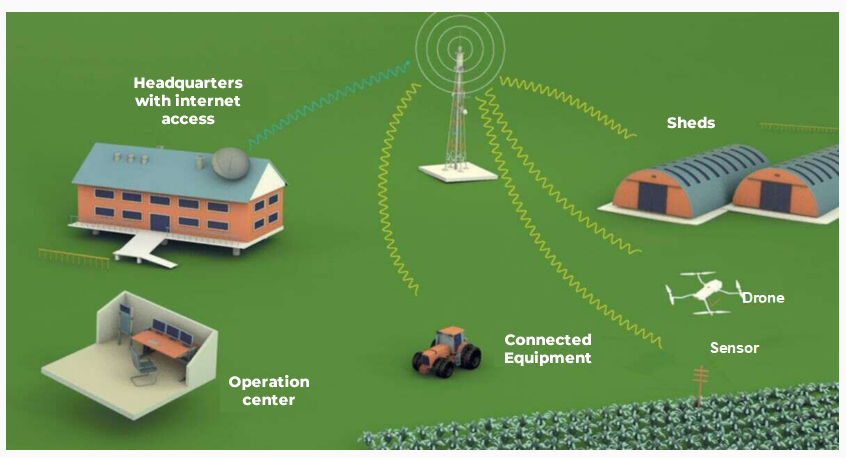

A private 4G LTE network on a farm allows a better management of its resources, including the machinery, agricultural inputs and human resources with the following features:
- Control of the applications that will have access to the Internet;
- Monitoring of agricultural machines and intervention in setups to increase performance and real time performance;
- Priority support for Agribussines
- Internet provision for employees who live on the farm (Digital Village)
End-to-End management and security

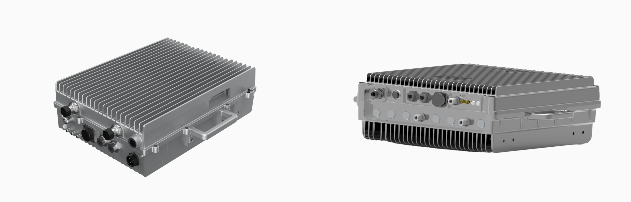

Key Features
Both for 2x20W and 2x40W
• Complies with 3GPP Release 13 standard
• GUI-based local and remote Web management
• TR069 network management interface support
• External high-gain antenna
• 192 concurrent users per eNodeB
• 384 RRC users per eNodeB
• Passive Cooling IP65
2x20W Only:
• Standard LTE TDD Band 38/40/41 or customized
• Supports 5/10/20 MHz bandwidth
• Peak rate (per unit): DL 145 Mbps, UL 30 Mbps @ 20 MHz bandwidth
2x40W Only:
• Standard LTE FDD Band 3/Band 5/Band 28 or customized
• Supports 5/10/15/20 MHz bandwidth
• Peak rate (per unit): DL 145 Mbps, UL 45 Mbps @ 20 MHz bandwidth
| Hardware Specifications | 2x20W | 2x40W |
| LTE Mode | TDD | FDD |
| Frequency Bands | Band 38/40/41 customized | Band 3/5/28 ou customized |
| Channel Bandwidth | 5 MHz, 10 MHz, 20 MHz | 5 MHz, 10 MHz, 15 MHz, 20 MHz |
| Max Output Power | 43dBm / chanels | 46dBm / chanels |
| Modulation | DL: QPSK, 16QAM, 64QAM, 256QAM UL: QPSK, 16QAM, 64QAM |
QPSK, 16QAM, 64QAM |
| Power Supply | -48V DC or 220V AC 220V AC (176V~264V) | 220V AC 220V AC (176V~264V) |
| Power Consumption | ≤ 250 | ≤ 350 |
| Receive Sensitivity | < -104dBm | < -101.5dBm |
| Dimensions (HxWxD) | 400 x 300 x 125 mm | 15.75 x 11.81 x 4.92 in | 420 x 450 x 164.5 mm | 16.5 x 17.7 x 6.48 in |
| Weight (exclude accessories) | < 20kg | 44.1 lbs | < 22kg | 31.1 lbs |
| Synchronization | GPS 1588 (optional) | GPS 1588 (optional) |
| Interfaces | One optical (SFP) and one RJ-45 Ethernet interface | One optical (SFP) and one RJ-45 Ethernet interface |
| MIMO | 2x2 | 2x2 |
| Installation | Pole or wall mount | Pole or wall mount |
| Antena Type | External high-gain antenna compatible with eNodeB 4.3-10 Female interface | External high-gain antenna compatible with eNodeB 4.3-10 Female interface |
| MTBF | > 1000,000 hours | > 1000,000 hours |
| Celular Specifications | |
| Supports Bands | 3GPP Release 10/ 11, CAT 6 |
| Peak Throughput | FDD Download 300Mbps; Upload 75Mbps TDD Download 220Mbps; Upload 15Mbps |
| LTE Bands | B1/2/3/4/5/7/8/12/17/20/28/38/40/41/42/43/48 |
| Carrier Aggregation (CA) and MIMO | CA: Donwload Intra/Inter 2CA MIMO: DL 2 x 2 MIMO/ 4 X 4 MIMO |
| Tx / Rx | 1 Tx / 4 Rx |
| Transmit Power | Power Class 3 (23 ± 2dBm) |
| LTE Antenna | 4 directional antennas |
| LTE Antenna Gain | 700 MHz ~ 1 GHz: 6 dBi 2.3 GHz ~ 2.7 GHz: 9 dBi |
| Hardware Specifications | |
| Fixed Interfaces | 1 x RJ45 10/ 100/ 1000Mb/s 1 x SIM slot (1.8V/ 3.0V 2FF) |
| LED | 4 LED indicators (PWR, NET, SIM, RF signal) |
| Reset | Reset and restore factory setup |
| Power Supply | 24V Non-standard PoE default IEEE 802.3 at compatible PoE customized |
| Power Consumption | < 8W |
| Power Adapter | Input: AC 90 ~ 240V Output: DC 24V/ 0.5A |
| Water and Dusproof | IP 67 |
| Dimensions | 288mm x 288mm x 82mm | 113in x 11.3in x 3.2in Weight: <2kg | 4lbs |
| Mounting | rail and wall mounting |
| Temperature and Humidity | Operating: -30°C~ 60°C|-22°F ~ 140° F Storage: -40º C ~85º C | -45º F ~ 185º F Humidity: 5 ~ 95% |
| Celular Specifications | |
| LTE Standard | 3GPP Release 12, CAT 12 |
| Support Bands | Band 1/3/7/8/20/38/41/42/43/48 |
| CA | Inter/ Intra 2 CA/3 CA/4 CA |
| MIMO | DL 2CA (4 x 4 MIMO 64 QAM) DL 4CA (2 x 2 MIMO 256 QAM) UL 2CA (2 x 2 MIMO 64 QAM) |
| Output Power@25°C| 77°F @25°C| 77°F | 23 ± 2dBm |
| LTE Antenna | 4 built-in antennas |
| Antenna Gain | 3 dBi |

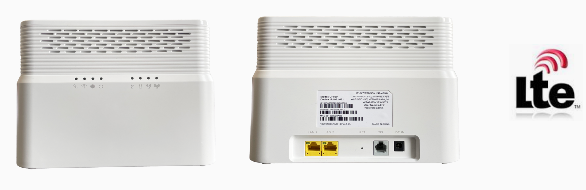

| Wi-Fi | |
| Wi-Fi frequency | 2.4 GHz ~ 5 GHz |
| Wi-Fi Antenna | Built-in high-gain Wi-Fi antenna |
| Wi-Fi output power | 2.4 GHz: 19dBm @ 11 Mbs 5 GHz: 16dBm @ 54Mbs |
| Wi-Fi channel BW | 20 MHz & 40 MHz & 80 MHz |
| Wi-Fi antenna gain | 2.4 GHz: 2dBi 5 GHz: 3 dBi |
| Hardware Specifications | |
| Ethernet LAN Port | 2 Gigabit RJ45 PoE LAN 10/100/1000M auto-sense, auto-MD/MDIX |
| Voice POTS Port (Optional) | 1 RJ 11 |
| LED | 8 LED indicators (PWR, Wi-Fi, TEL, NET, RF Signal x 4) |
| USIM | 1 USIM/ SIM (3FF) |
| Reset / Rebot | Tact switch (3) |
| Antenna | 8 directional antennas |
| Dimensions | 204.5 mm x 169 mm x 60mm 8.05 in x 6.65 in x 2.36 |
| Weight | < 500g | 1.1 lbs |
| Power Consumption | < 12 W |
| Power Supply | AC 100 ~240V DC 12V 2A |
| Environment Specifications | |
| Temperature | |
| Operating | -10º C ~ 55º C | 14º F ~ 113º F |
| Storage | -40º C ~ 85º C | -40º F ~ 185º F |
| Humidity | |
| Operating | 5 ~ 95% |
| Storage | 5 ~ 95% |
